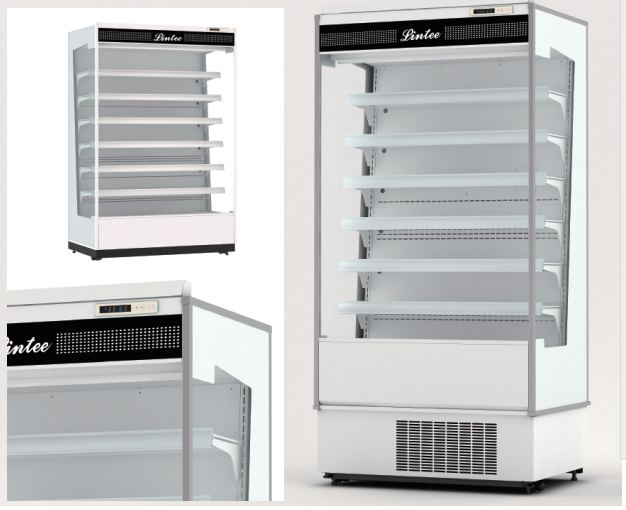

IVC2-4B1-032 Open half height display cabinet
| Model | Plug-in style | IVC2-4B1-032 | IVC2-4B1-042 | RVC2-4A2-109 | IVC2-4B1-062 | IVC2-4B1-082 |
| standard specifications | W*H(mm) | 650 X1900 | ||||
| standard module | 305mm | 3 | 4 | 5 | 6 | 8 |
| Length without sidewalls | mm | 915 | 1220 | 1525 | 1830 | 2440 |
| The tickness oftwo sidewalls | mm | 50 | ||||
| Area ofdisplay surface | m2 | 1.1 | 1.4 | 1.8 | 2.1 | 2.8 |
| Volume of the refrigerated box | L | 275 | 366 | 459 | 549 | 732 |
| Ambient temperature | ℃ | +3~+7 | ||||
| Ambient conditions | C/%HR | +25C/60%HR | ||||
| Airvelocity | M/C | ≤0.25 | ||||
| Running power | W | 910 | 1350 | 1420 | 1820 | 2100 |
| Electricity supply | V/Hz | 220V±10%,50Hz,L+N+Pe | ||||
Power of thawing | W | Shutdown and natural defrosting | ||||
Product Details
| Model | Plug-in style | IVC2-4B1-032 | IVC2-4B1-042 | RVC2-4A2-109 | IVC2-4B1-062 | IVC2-4B1-082 |
| standard specifications | W*H(mm) | 650 X1900 | ||||
| standard module | 305mm | 3 | 4 | 5 | 6 | 8 |
| Length without sidewalls | mm | 915 | 1220 | 1525 | 1830 | 2440 |
| The tickness oftwo sidewalls | mm | 50 | ||||
| Area ofdisplay surface | m2 | 1.1 | 1.4 | 1.8 | 2.1 | 2.8 |
| Volume of the refrigerated box | L | 275 | 366 | 459 | 549 | 732 |
| Ambient temperature | ℃ | +3~+7 | ||||
| Ambient conditions | C/%HR | +25C/60%HR | ||||
| Airvelocity | M/C | ≤0.25 | ||||
| Running power | W | 910 | 1350 | 1420 | 1820 | 2100 |
| Electricity supply | V/Hz | 220V±10%,50Hz,L+N+Pe | ||||
Power of thawing | W | Shutdown and natural defrosting | ||||
Frequently Asked Questions about professional kitchen supplies
Q:Is Design Free?
A:
Yes, our design is provided free of charge to each customer's specialized parents, and no fees will be charged.
Q:Are You a Factory?
A:
We are a factory, we have an independent factory
