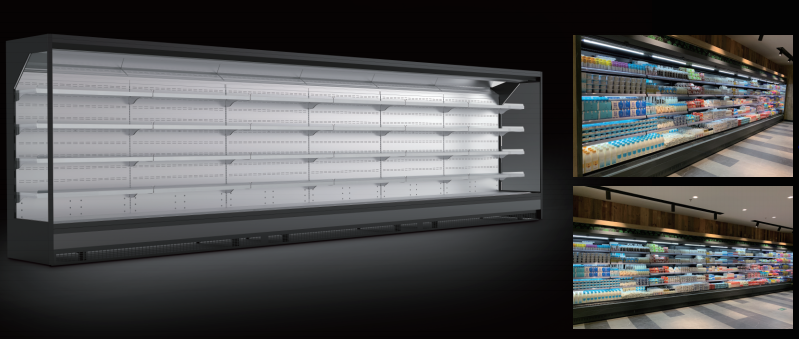

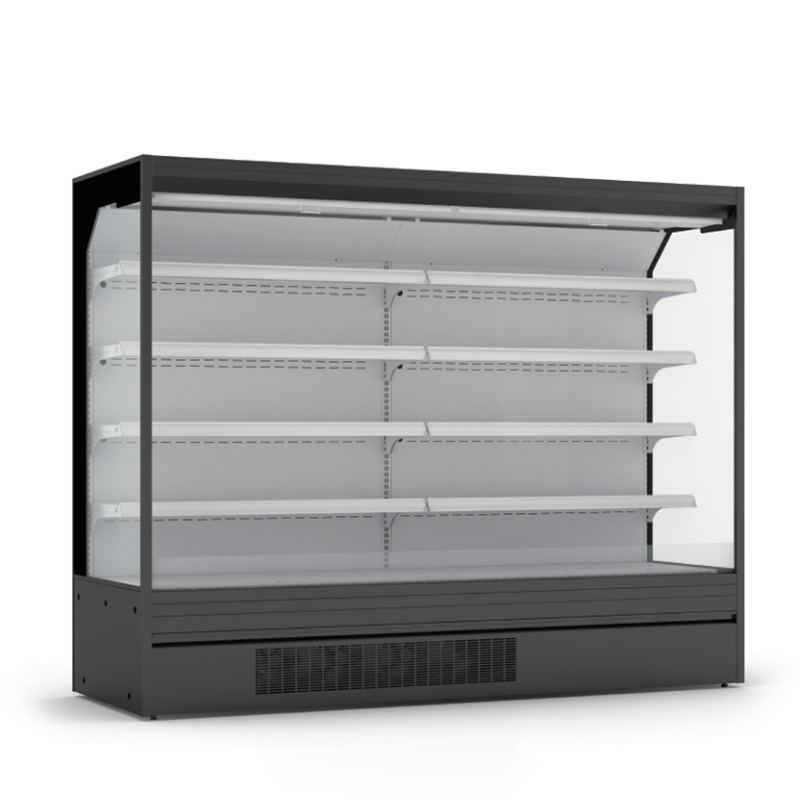

IVC2-4A1-105 Open horizontal showcase
| Model | Plug-in style | IVC2-4A1-065 | IVC2-4A1-085 | IVC2-4A1-105 |
| standard specifications | W*H(mm) | 850 X2050 | ||
| standard module | 625mm | 3 | 4 | 5 |
| Length without sidewalls | mm | 1875 | 2500 | 3125 |
| The tickness oftwo sidewalls | mm | 80 | ||
| Area ofdisplay surface | m2 | 2.81 | 3.75 | 4.69 |
| Volume of the refrigerated box | L | 1038 | 1385 | 1731 |
| Ambient temperature | ℃ | +2~+8 | ||
| Ambient conditions | C/%HR | +25C/60%HR | ||
| Airvelocity | M/C | ≤0.25 | ||
| Running power | W | 2030 | 2280 | 2900 |
| Electricity supply | V/Hz | 220V±10%,50Hz,L+N+Pe | ||
Power of thawing | W | Shutdown and natural defrosting | ||
Product Details
| Model | Plug-in style | IVC2-4A1-065 | IVC2-4A1-085 | IVC2-4A1-105 |
| standard specifications | W*H(mm) | 850 X2050 | ||
| standard module | 625mm | 3 | 4 | 5 |
| Length without sidewalls | mm | 1875 | 2500 | 3125 |
| The tickness oftwo sidewalls | mm | 80 | ||
| Area ofdisplay surface | m2 | 2.81 | 3.75 | 4.69 |
| Volume of the refrigerated box | L | 1038 | 1385 | 1731 |
| Ambient temperature | ℃ | +2~+8 | ||
| Ambient conditions | C/%HR | +25C/60%HR | ||
| Airvelocity | M/C | ≤0.25 | ||
| Running power | W | 2030 | 2280 | 2900 |
| Electricity supply | V/Hz | 220V±10%,50Hz,L+N+Pe | ||
Power of thawing | W | Shutdown and natural defrosting | ||
Frequently Asked Questions about professional kitchen supplies
Q:Is Design Free?
A:
Yes, our design is provided free of charge to each customer's specialized parents, and no fees will be charged.
Q:Are You a Factory?
A:
We are a factory, we have an independent factory
